manufactured by:
TeleScoping Poles

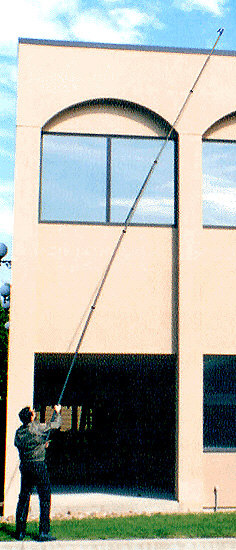

30 ft Stealth pole
Stealth TeleScoping Pole™
Black Etch Anodized
T-Lock™
Stealth TeleScoping Poles™

Designed for military special forces, these are the most rigid telescoping poles available.  Made with light-weight, high-strength aluminum alloy, a 30-ft (10 meter) pole weighs only 13 lbs.  Tip deflection depends upon load, with normal load, deflection at full extension is nominal.

Suitable for military, police, engineers, or rescue personnel to place climbing lines, cable ladders or other special use items or equipment in places 7 to 12 meters above ground (or sea) level.

The pole is available with a variety of tips:

Universal Mount (use with any Special Tools
1/2-inch Hollow Shaft (optional threaded *) fits Laser Hook & Tech Hook
GPS  Thread  (5/8 x11)
Broom Thread
Plastic Plug (5/16 x18 metal threads)
Boat Hook
Custom fittings, tools or miniature electronic devices may be designed for possible use in substitution of the final tube segment by special request.

T-Lock™ Stealth TeleScoping Poles™ cannot be disassembled and will not come apart in the field.  Poles when locked at full extension provide substantial torque or twist capability by user to the tip end.  Locked poles cannot accidentally collapse in use.  Very high strength fore and aft on axis of pole, locked segments cannot slip loose.  Locked fully extended, poles may be used upright, horizontal or inverted.

Functionality of pole is limited to the reasonable limits of an individual's personal strength and ability to control the hook-end of the pole at distance.  Poles longer than 30-feet or with heavy tip load, require counterweights attached at the base for safe use.

Individual Custom T-Lock™ TeleScoping Poles may be produced on short notice.  Large batches of poles available by special order with 8 to 12 weeks for delivery.  Prices may vary according to market rate of raw Aluminum.

Marine T-Lock™ Stealth TeleScoping Poles™ designed specifically for special operations at sea available with marine quality Lucite® foam floatation.  Tip segment is foam filled and sealed, base segment is wrapped with four adjustable floatation sleeves which may be trimmed to exact buoyancy preference.

For further information Email  or Call.

Internal steel locking pins are capped with nylon tip slides for smooth operation (if for use in high heat environment, please specify, so that pole can be made without nylon slides).
.

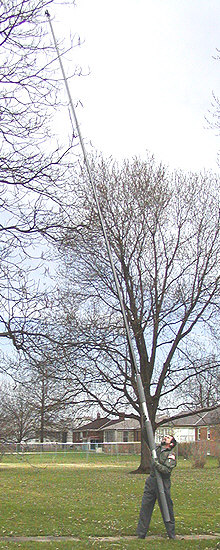

30-ft Marine Stealth pole
Marine Stealth TeleScoping Pole™
w Lucite® foam floatation
Materials:
Drawn Aluminum Tubing
.049" wall thickness (+/- .003")
Precision machined T-Lock™ sleeve joints
alloy tensile strengths approx. 45,000 lbs.
Finish: Tubing: natural Grey or Black Etch Anodized
Locks: natural aluminum or painted flat black
Marine foam: Lucite® brand

T-Lock™ Instruction Sheet

Also see
original Stealth TeleScoping Poles™
Carbon Fiber TeleScoping Poles,
Fiberglass TeleScoping Poles
Portable Tripod w Gimbal System, &
J-Lock™ TeleScoping Poles/Masts

See Warnings below and
Pole Utilization Errata


Fiberglass, Carbon Fiber, PoleTools, Lamp Changers, Range Poles, GPS Poles, Measurement Sticks, Tripod System, J-Lock™ Mast,
ORDER
T-Lock™ Stealth TeleScoping Pole™
.

Black Etch Anodized
T-Lock™ Stealth TeleScoping Poles™
natural Grey Etch Anodized
T-Lock™ Marine Stealth TeleScoping Poles™
Marine w Lucite® foam floatation add us$75.
.
Length wt. Collapsed
Length
dia.
Base (in)
part no. Price (US$)
15.5 ft 5 lbs 97 inches 1.5 T-LOCK15/2 295.
23 ft 8.6 lbs 100 inches 2.0 T-LOCK23/3 395.
30.5 ft * 13.2 lbs 103 inches 2.5 T-LOCK30/4 595.
38 ft * 18.8 lbs 106 inches 3.0 T-LOCK38/5 695.
* counterweight required
.
.
Pole Tips
Click to ENLARGE
Universal Mount
w Thumbscrew
us$40.
.see Special Tools
Click to ENLARGE
1/2" Hollow Shaft

optional:
Smooth Bore .

light thread
light thread
1/2" x13
1/2" x20
full thread
full thread
9/16" x12
9/16" x18
us$34.
Click to ENLARGE
GPS  Thread
5/8" x11
us$34.
Click to ENLARGE
Broom Thread
us$24.
Click to ENLARGE
Lightweight
Plastic Plug
w 5/16" x18
metal thread
us$15.
compact Boat Hook
compact
Boat Hook
(pin fit onto pole)
us$58.
.
96-inch extension
96-inch AL extension for Universal Mount
us$110.
.
ORDER
Click to ENLARGE
Cinch Straps
Small (1.3" dia)
Medium (2.5" dia)
Large (3.8" dia)
us$19.95
Click to ENLARGE
Carabiner Clip for Univ Mount
(as shown, Carabiner not included)
us$65.
.
Carabiner Clip for Broom Thread
us$30.

32-ft Steel Cable Ladder
AL rungs 6-inch wide
rated 1,324LB
(3.25LB)
us$145

Pool Hook
26 x 23 x 9-inches, not rated
"for grasping only - not for life safety"
(1.5LB)
us$95
Wilcox Assault Hook
Wilcox
3 prong 154°
Assault Hook
(carabiner not included)
call for
information
Click for closer view

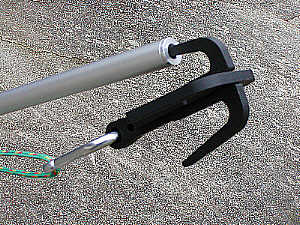

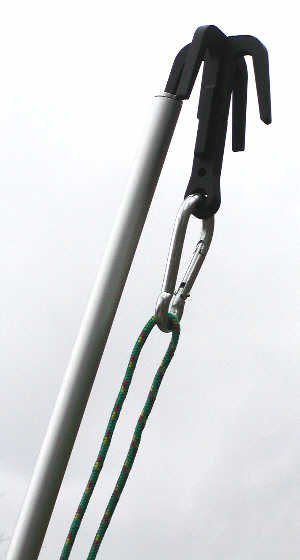

Hook System
w 1/2" Hollow Shaft tip
(components sold separately)
(line not included)

4.75" Hvy Duty Carabiner
7/16" dia Steel stock
rated +500LB
us$20

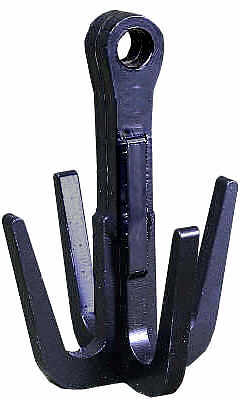

Laser Hook
fits 1/2" Hollow Shaft
Laser cut Steel rated 10,000LB

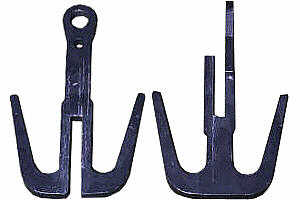

separates to stow
4.2 x 6-inches
(2.2LB)
us$70

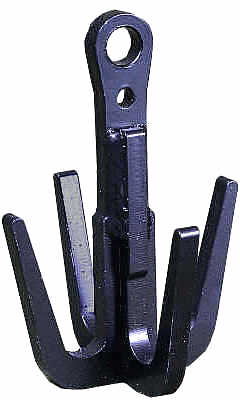

Tech Hook
fits 1/2" Hollow Shaft
Laser cut Steel rated 10,000LB
welded as is
4.2 x 6-inches
(2.2LB)
us$75

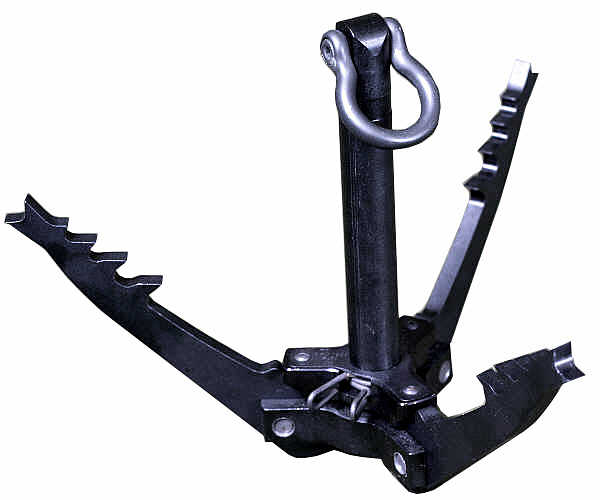

Grabber Hook
Aluminum w Stainless Steel
rated 1,650LB

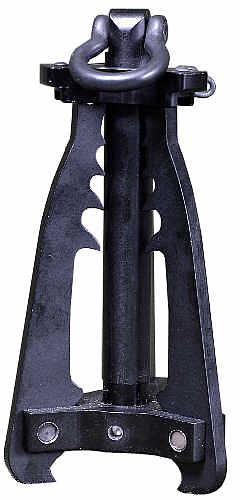

folds up to stow
11 X 10-inches
(1.6LB)
us$179
ORDER
.
Pole Base Counterweights
10 Lbs
10 Lb Set
us$24.95
20 Lbs
20 Lb Set
us$49.95
Rubber Boot
Base Cap Rubber Boot
1.5" us$12.
2.0" us$16.
2.5" us$20.
3.0" us$25.
.

Padded Canvas Storage Bag
5-inch diameter x 108 long, Velcro® closure, carry strap
us$149.
.ORDER
.
NOTICE:
DLA CAGE CODE:  3RKS6

T-Lock™ Stealth TeleScoping Poles™ are NOT provided via the DLA system.  You must Order direct.  We accept Visa/MC purchase cards and deliver direct to individual commands.

GeoData Systems Management Inc. (GeoData) sells direct to business, military & government end users.

GeoData is the SOLE SOURCE manufacturer and provider of these T-Lock™ StealthTeleScoping Poles™.

Names T-Lock™ StealthTeleScoping Poles™ are the exclusive property and trademarks (™) of GeoData Systems Management Inc.

We guarantee all products as represented herein and that prices posted are lowest cost prices for these products to any end user.  Prices are as posted, plus shipping, insurance & handling, not including any applicable taxes, duties or tariffs (usually exempt to government users).

T-Lock™ StealthTeleScoping Poles™ are NOT SOLD to any third party organization for Resale.  "Open Bidding" for these poles by any party, organization, or governmental entity is strictly prohibited.  Instituting such activity, violates our rights as Sole Source Manufacturer, our contracts, and ultimately USA and international law.

Orders may be placed by business end users, military commands, procurement personnel, duly contracted government agents, or national embassy personnel and/or Liaison Officers in Washington, DC.


.
Fiberglass, Carbon Fiber, PoleTools, Lamp Changers, Range Poles, GPS Poles, Measurement Sticks, Tripod System, J-Lock™ Mast, ORDER
WARNING
Pole strength and durability are still unknown.  However, military and manufacturer evaluations in process indicate impressive resistance to pole failure with nominal loads in hook end.  Poles are capable of being raised and lowered from horizontal to vertical while fully extended, without danger of pole failure or excessive bending.

When a pole extended more than 30-feet (10 meters) is to be used, it is required to have the assistance of additional persons
and use of counterweight on pole base is REQUIRED.
See Warnings & Utilization Notes and Pole Utilization Errata.

DANGER
Not recommended for use in the vicinity of electrical power, power lines or any other potentially electrical environment without proper additional safeguards, precautions and special personnel safety training.
.
Manufacturer assumes no personnel liabilities what-so-ever in the use of these poles.
End user assumes full responsibility for any hazards, injury or deaths which may result from any proper or improper utilization of these poles.
.
Also see original  Stealth TeleScoping Poles™
ORDER T-Lock™ TeleScoping Poles™Information Request
Further information, Email  or  Call 1-440-888-4749 (M-F 9-5 EST)
