TeleScoping Poles
T-Lock™ TeleScoping pole

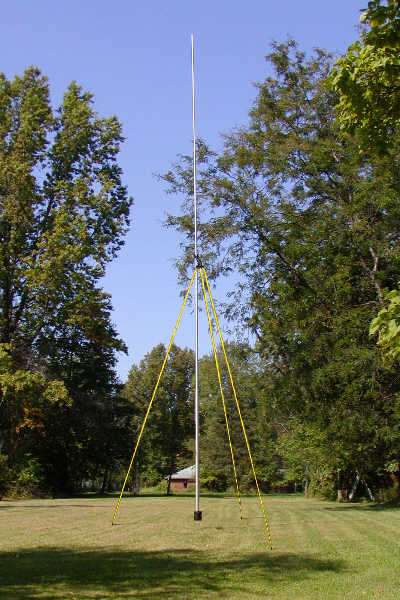

30-ft aluminum T-Lock™ GPS pole
at full extemsion shown in
LongLegs™ Tripod Gimbal System (optional)
Aluminum
T-Lock™ TeleScoping
GPS Antenna Pole

5/8-inch x 11 thread mount at top for standard GPS antennae or other standard electronic devices.

Most rigid very long poles available.

Made with lightweight drawn aluminum, with all metal machined locks pressed into tubing.  Useful in elevation of antenna in areas of tree cover or urban canyons where reception of satellite signals is impaired.

Segments easily extend to full length and lock up into position with a simple twist to the left.   Segment unlocks by moving segment up/down to "sweet spot" at center of "T" and easy twist to the right.  Simple.

Poles are extended to full length and segments locked on the ground, and then raised up in use.  Poles are not designed to be extended or collapsed vertically.

Segments not extended cannot be locked.  For different pole lengths required, order separate poles.

T-Lock™ TeleScoping Poles cannot be disassembled and will not come apart in the field.  Poles when locked at full extension provide substantial torque or twist capability by user to the tip end.  Locked poles cannot accidentally collapse in use.  Very high strength fore and aft on axis of pole, locked segments cannot slip loose.

Poles should be used with LongLegs™ Tripod Gimbal System (optional).

Individual pole Storage case available.

Caution
Aluminum is highly conductive in any electric environment.


GPS tips can be fit onto fiberglass poles, if requested.  Fiberglass is more flexible, with shorter & more numerous segments.
.
See TeleScoping Fiberglass Poles for pole secifications.
.
To Order fiberglass for GPS, specify "GPS tip" in FORM Special Instructions.  Or, Order a GPS Adapter for the standard Universal Mount.
Aluminum
T-Lock™ TeleScoping GPS Antenna Pole
.

T-LOCK30/4GPS
.
Full
Length
wt. Collapsed
Length
dia.
Base (in)
part no. Price (US$)
15.5 ft 5 lbs 97 inches 1.5 T-LOCK15/2GPS 390.
23 ft 8.6 lbs 100 inches 2.0 T-LOCK23/3GPS 500.
30.5 ft * 13.2 lbs 103 inches 2.5 T-LOCK30/4GPS * 620.
38 ft * 18.8 lbs 106 inches 3.0 T-LOCK38/5GPS * 760.
5/8 x 11 GPS thread mount included,
NO mensurations on Aluminum poles.  For mensurated poles see Measurement Sticks
..
* Maximum length of pole manageable by an individual with good physical strength is limited to 30 feet (10 meters).  This is due to the nature of relative weight of the far end of the pole at distance.  Beyond 30 feet is beyond the reasonable limits of an individual's personal strength and ability to control the top end of the pole. When a pole extended more than 30 feet is to be used, it is REQUIRED to use counterweights at the pole base and to have the assistance of additional persons.
.
NOTES:  Free standing very long poles of any material are flexible.  The longer the pole, the more flexible.
For accurate results when using very long poles, multiple readings should be taken and then averaged.
Poles require counterweight (*) added at base for stability during use.  Exact amount of counerweight depends on length of pole and weight of GPS antenna.
.
Order
Pole Base Counterweights
10 Lbs
10 Lb Weight Set, (2) 5Lb
us$25
20 Lbs
20 Lb Weight Set, (2) 5Lb + (1) 10Lb
us$50.
5 Lbs
5 Lb Weight
us$12.50
15 Lbs
15 Lb Weight Set, (1) 5Lb + (1) 10Lb
us$37.50
.
Pole Boot (optional)
Rubber Boot
Base Cap Rubber Boot
1.5" us$12.
2.0" us$16.
2.5" us$20.
3.0" us$25.
.
Padded Canvas Storage Bag

5-inch diameter x 108 long, Velcro® closure, carry strap
us$169.
..
Canister KitCanister Kit
.
Storage Canister Kits
part no. Size Price (us$)
020-TCK4 4 ½-inch dia Kit 72.
020-TCK6 6 5/8-inch dia Kit 76.
020-TCK8 8 5/8-inch dia Kit 91.
SB4 PVC Extra Bracket (4 ½-inch) 9.
SB6 PVC Extra Bracket (6 5/8-inch) 10.
SB8 PVC Extra Bracket (8 5/8-inch) 11.
Canister Kit
Pole Storage Canister Kit
Lockable, O-Ring seals, permanent mounting

.Premium forged Aircraft Aluminum alloy KIT consists of
lid assembly, end cap, (2) mounting brackets, adhesive, fasteners & instructions.

  • 4 ½ inch for use with 4" OD standard PVC  020-TCK4
  • 6 5/8 inch for use with 6" OD standard PVC  020-TCK6
  • 8 5/8 inch for use with 8" OD standard PVC  020-TCK8
Subject to mfg. availability; prices subject to change.
All prices above for USA product in US$.  Plus shipping and applicable taxes, duties or tariffs.
OH resident's will be charged sales tax, recipients must pay any other applicable taxes, duties or tariffs.
.
Fiberglass, Aluminum, Carbon Fiber, LampChanger, Range Poles, Measurement Sticks, Tripod System, J-Lock™ Mast
Order
.
WARNING
Pole strength and durability are unknown.  However, manufacturer evaluations indicate impressive resistance to pole failure with nominal loads in hook end.  Poles are capable of being raised and lowered from horizontal to vertical while fully extended, without danger of pole failure or excessive bending.

When a pole extended more than 30-feet (10 meters) is to be used, it is required to have the assistance of additional persons
and use of counterweight on pole base is REQUIRED.
See Warnings & Utilization Notes and Pole Utilization Errata.

DANGER
Not recommended for use in the vicinity of electrical power, power lines or any other potentially electrical environment without proper additional safeguards, precautions and special personnel safety training.
Manufactured by GeoData Systems Management Inc.

Manufacturer assumes no personnel liabilities what-so-ever in the use of these poles.
End user assumes full responsibility for any hazards, injury or deaths which may result from any proper or improper utilization of these poles.
