TeleScoping Poles
Measurement Sticks

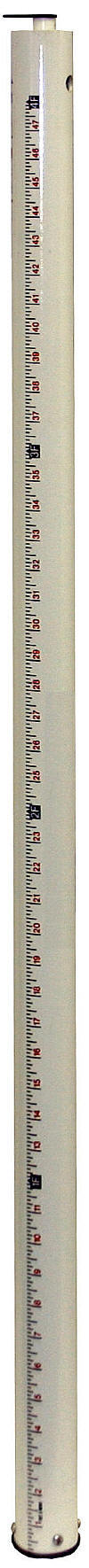

25ft (7.6m)
25 ft
7.6 m

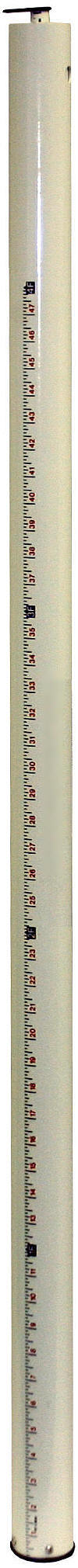

36 ft (7.6m)
36 ft
11.0 m
50ft (15.2m)
50 ft
15.2 m
Measurement Sticks
CLICK Pix to Enlarge
Measurement Sticks

Lightweight and safe, these Measuring sticks are ideal for fast and accurate measurements of overhead lines, telephone and cable-TV lines, highway clearances, structures and bridges, and transport carriers.  Made with high-strength fiberglass, they feature positive locking, spring-loaded round buttons for fast and easy extension.  They also feature eye-level reading at the top of the base section, so no calculations are required.  All sticks are waterproof

Measurement Sticks are round with dual mensuration in BOTH English (feet / inch) and Metric (meter / centimeter).  Measurement is read by extending sections starting with the top segment, when tip reaches the desired height, read height at the top edge of the base segment.

"Trucker's" Load Height Sticks have a flattened oval cross section, with wide wear resistant scales available in English (feet / inch or 10ths) or Metric (meter / centimeter) units of measurement.  Load height measurement is read on the side with red markings.  Reverse side features standard mensuration from the bottom up of the fully extended stick.

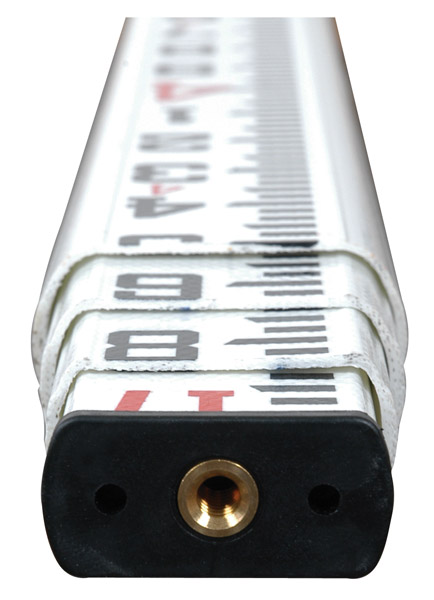

All Measurement Sticks and Load Height Sticks feature 1/4" x20 thread female fitting at the tip.  Standard Measurement Stick end tip is 1.3-inch metal plate.  Optional 6-inch caliper tip or fiberglass cross arms attach at the top of Load Height Sticks to easily measure height of obstacles or loads on trailers.

All sticks include a durable 1000-denier nylon case with carry strap.

Optional Storage Canister Kits provide easy lockable storage for a pole on tractor chassis or frame, truck or van.

Made of dielectric fiberglass, poles are rated resistant electrical flow to 100kV rms as delivered new.

Maximum length of pole manageable by an individual with good physical strength is limited to 10 meters (~30 feet)*.  This is due to the nature of relative weight of the far end of the pole at distance.  Beyond 10 meters is beyond the reasonable limits of an individual's personal strength and ability to control the hook-end of the pole.

When a pole extended more than 10 meters is to be used, it is required to have the assistance of additional persons and use of counterweight on pole base is required.


Load Height Sticks

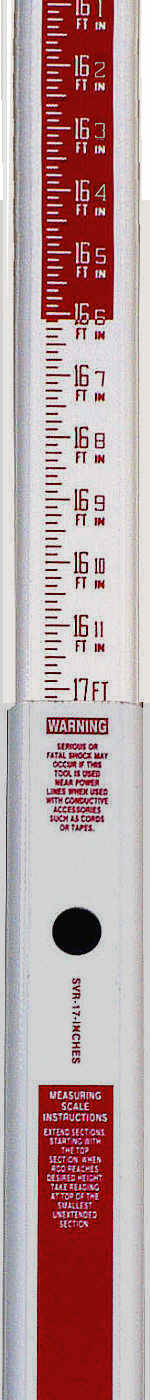

Load Ht feet / inch
feet
/ inch

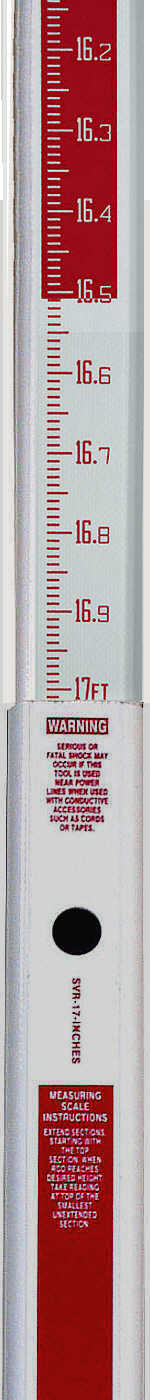

Load Ht feet / 10ths
feet
/10ths
Load Ht scales
.
.
standard scale feet / inch
feet
/inch
standard scale feet / 10ths
feet
/10ths
standard scale E metric
E
metric
standard scale Philly metric
Philly
metric
standard scale CM metric
CM
metric
Load Height Sticks
CLICK Pix to Enlarge
.
See Warnings & Utilization Notes and Pole Utilization Errata
top of page, Fiberglass, Aluminum, Carbon Fiber, Lamp Changer Poles, Range Poles, GPS Poles, Tripod System, J-Lock™ Mast
Order

Measurement Sticks
Full Length Mensuration wt. Collapsed
Length
OD
Base
Segments part no. Price (US$)
25 ft / 7.6 m ft /inch
& metric
5 lbs
(2.27Kg)
51½ in 1.8 in 7 90180 330.
36 ft / 11.0 m * ft /inch
& metric
9 lbs
(4.08 Kg)
58½ in 2.2 in 9 90181 550.
50 ft / 15.2 m * ft /inch
& metric
12 lbs
(5.4 Kg)
66½ in 2.4 in 11 90182 770.
.
Nylon Storage Case
included


Load Height Sticks English
Full Length Mensuration † wt. Collapsed
Length
Segments part no. Price (US$)
17 ft ft /10ths 5 lbs 58½ in 4 98020 180.
17 ft ft /inch 5 lbs 58½ in 4 98021 180.

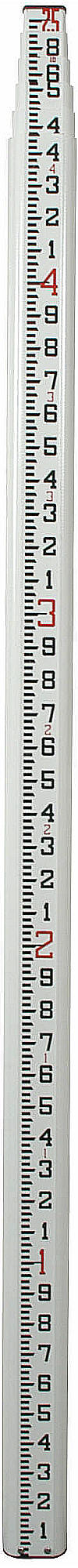

25 ft ft /10ths 6 lbs 58½ in 6 98010 210.

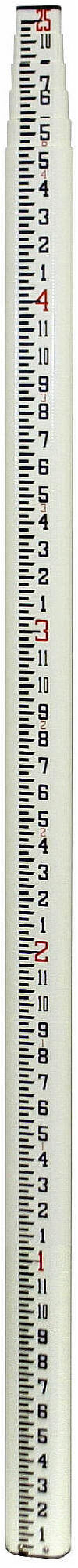

25 ft ft /inch 6 lbs 58½ in 6 98011 210.
Load Height Sticks Metric
Full Length Mensuration † wt. Collapsed
Length
Segments part no. Price (US$)
5.2 m E metric 2.3 Kg 149 cm 4 98023 180.
5.2 m Philly metric 2.3 Kg 149 cm 4 98024 180.
7.6 m CM metric 2.7 Kg 149 cm 6 98012 210.
7.6 m E metric 2.7 Kg 149 cm 6 98013 210.
7.6 m Philly metric 2.7 Kg 149 cm 6 98014 210.
Tip End Accessories
Item Length wt. part no. Price (US$)

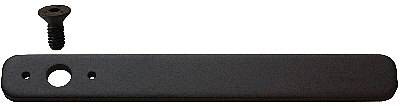

Caliper 6 inches (0.15m) .09 lb (.04 Kg) 91014 20.
Cross Arm 2.0 ft (0.6m) 3 lbs (1.4 Kg) CROSSARM2.0 50.
Long Cross Arm 3.75 ft (1.1m) 4 lbs (1.8 Kg) CROSSARM3.75 60.
† click to veiw scale hi-res

Caliper
.See Warnings
Cross Arm
.See Warnings

Nylon Storage Case
included

Subject to mfgr availability; prices subject to change.
All prices above for USA product in US$.  Plus shipping and applicable taxes, duties or tariffs.
OH resident's will be charged sales tax, recipients must pay any other applicable taxes, duties or tariffs.
All pole sections are tested per OSHA, ASTM F-711, IEC-855 & IEC-1235.
See Warnings & Utilization Notes and Pole Utilization Errata
Order


top of page, Fiberglass, Aluminum, Carbon Fiber, Lamp Changer Poles, Range Poles, GPS Poles, Tripod System, J-Lock™ Mast
.
Canister KitCanister Kit
.
Storage Canister Kits
part no. Size Price (us$)
020-TCK4 4 ½-inch dia Kit 69.
020-TCK6 6 5/8-inch dia Kit 73.
020-TCK8 8 5/8-inch dia Kit 87.
SB4 PVC Extra Bracket (4 ½-inch) 8.
SB6 PVC Extra Bracket (6 5/8-inch) 9.
SB8 PVC Extra Bracket (8 5/8-inch) 10.
Canister Kit
Pole Storage Canister Kit
Lockable, O-Ring seals, permanent mounting

.Premium forged Aircraft Aluminum alloy KIT consists of
lid assembly, end cap, (2) mounting brackets, adhesive, fasteners & instructions.

  • 4 ½ inch for use with 4" OD standard PVC  020-TCK4
  • 6 5/8 inch for use with 6" OD standard PVC  020-TCK6
  • 8 5/8 inch for use with 8" OD standard PVC  020-TCK8
Order.
.
Pole Base Counterweights
10 Lbs
10 Lb Weight Set
us$24.95
20 Lbs
20 Lb Weight Set
us$49.95
top of page, Fiberglass, Aluminum, Carbon Fiber, Lamp Changer Poles, Range Poles, GPS Poles, Tripod System, J-Lock™ Mast
Order
.
WARNING
Pole strength and durability are unknown.  However, manufacturer evaluations indicate impressive resistance to pole failure with nominal loads in tip end.  Poles are capable of being raised and lowered from horizontal to vertical while fully extended, without danger of pole failure or excessive bending.  See Utilization Notes.  Extra care must be practiced using optional cross arms to avoid damage to tip section of any measurement stick.  Replacement parts are available for repair.

When a pole extended more than 30-feet (10 meters) is to be used, it is required to have the assistance of additional persons
and use of counterweight on pole base is REQUIRED.
 See Warnings & Utilization Notes and Pole Utilization Errata.

DANGER
Not recommended for use in the vicinity of electrical power, power lines or any other potentially electrical environment without proper additional safeguards, precautions and special personnel safety training.
Sticks manufactured byCrain-Seco.
* Distributor & Manufacturer assume no personnel liabilities what-so-ever in the use of these poles or accessories.
End user assumes full responsibility for any hazards, injury or deaths which may result from any proper or improper utilization of these poles.
.
INFO Tel-O-Pole Measurement Sticks
For further information, Email or Call 1-440-888-4749 (M-F 9-5 EST)
