CLD-V2800
Compact LaserDisc
Player
|
CLD-V2300D
NTSC/PAL 220v LaserDisc Player |
CLD-V2400
LaserDisc Player
|
CLD-V2600
S-video LaserDisc Player |
Professional LaserDisc performance
in a compact housing.
NTSC, USA certifications, 110vAC, 60Hz.
This Level I/Level III player includes
an RS-232 interface for computer control, and convenient features like
jumper set Auto Start and Auto Repeat for "set-and-forget" operation.
-
RS-232C Interface for Computer Control
-
LaserBarcode
System
-
Plays all LD & CD's:
-
12-inch LD
-
8-inch LD
-
20cm CD
-
8cm CD
-
20cm VCD
-
Auto Start & Repeat
-
Analog & Digital Audio, CX decoder
-
Video out
-
RF Modulator
-
Headphone Jack with Volume Control
-
Text Display for Titles, Instructions
and Comments
-
CU-V113
Wireless Remote
|
NTSC/PAL, Euro certifications, 220-240vAC, 50-60Hz,
color beige.
Easy operation and long-term durability, plays 12" and
8" NTSC or PAL LaserDiscs, audio CDs and CDV discs. It can be operated
by remote control, Barcode, computer, or with the extensive controls right
on the front panel.
Selectable video output as NTSC or PAL. Front panel
display.
-
RS-232C Interface for Computer Control
-
LaserBarcode
System
-
Plays all LD & CD's:
-
12-inch LD
-
8-inch LD
-
20cm CD
-
8cm CD
-
20cm VCD
-
Auto Start & Repeat
-
Analog & Digital Audio, CX decoder
-
Text Display for titles, Instructions and Comments
-
CU-V113
Wireless Remote
|
SOLD OUT
for INFORMATIONAL PURPOSES ONLY
NTSC, USA certifications, 110vAC, 60Hz.
Easy operation and long-term durability, plays 12" and
8" LaserDiscs, audio CDs and CDV discs. It can be operated by remote control,
Barcode, computer, or with the extensive controls right on the front panel.
Front panel display.
-
RS-232C Interface for Computer Control
-
LaserBarcode
System
-
Plays all LD & CD's:
-
12-inch LD
-
8-inch LD
-
20cm CD
-
8cm CD
-
20cm VCD
-
Auto Start & Repeat
-
Analog & Digital Audio, CX decoder
-
RF Modulator
-
Text Display for titles, Instructions and Comments
-
CU-V113
Wireless Remote
|
NTSC, USA certifications, 110vAC, 60Hz.
Easy operation and long-term durability, plays 12" and
8" LaserDiscs, audio CDs and CDV discs. It can be operated by remote control,
Barcode, computer, or with the extensive controls right on the front panel.
Two-speed shuttle dial control, an S-Video terminal*,
a front panel display and a front panel headphone jack with volume control.
-
RS-232C Interface for Computer Control
-
LaserBarcode
System
-
Plays all LD & CD's:
-
12-inch LD
-
8-inch LD
-
20cm CD
-
8cm CD
-
20cm VCD
-
Auto Start & Repeat
-
Analog & Digital Audio, CX decoder
-
S-video mini-DIN out
-
VHF3/4 out (F-type)
-
antenna VHF in (F-type)
-
Headphone Jack with Volume Control
-
Text Display for titles, Instructions and Comments
-
CU-V113
Wireless Remote
|

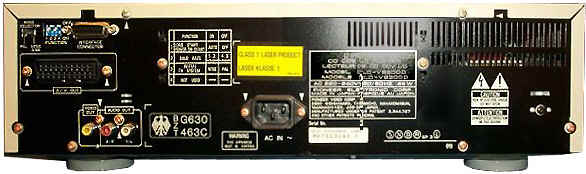

view Rear
Panel (click) |

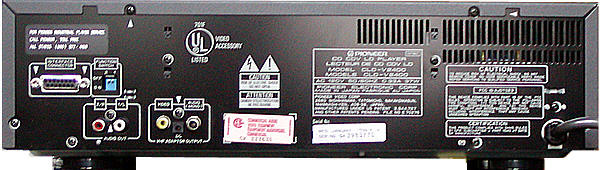

view Rear Panel (click) |

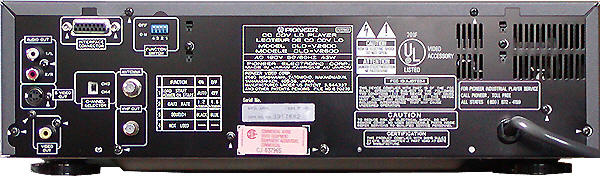

view Rear Panel (click) |
view Rear Panel (click) |
top of page, Specifications,
Barcode
Software, Barcode Readers, Remote
Control, Parts,
Prices,
ORDER
| Specifications |
CLD-V2800 |
CLD-V2300D |
CLD-V2400 |
CLD-V2600 |
| DISC
TYPES |
| LaserDisc (LD) |
NTSC
12-inch (30 cm) CAV, CLV
8-inch (20 cm) CAV, CLV |
NTSC, PAL
12-inch (30 cm) CAV, CLV
8-inch (20 cm) CAV, CLV |
NTSC
12-inch (30 cm) CAV, CLV
8-inch (20 cm) CAV, CLV |
| Compact Disc (CD) |
5-inch (12 cm)
3.5-inch (8 cm) |
| Video CD (VCD) |
5-inch (12 cm) |
| Material Type |
Acrylic, Policarbonate |
| VIDEO SIGNAL |
| Resolution |
NTSC 425 lines |
NTSC 425lines, PAL 600 lines |
NTSC 425 lines |
| Output Level |
1volt p-p ±10% (75 ohms) |
1volt p-p ±10% (75 ohms)
S-video Y:1Vp-p C:0.028Vp-p (75 ohms) |
| Signal to Noise Ratio |
48 dB (unweighted EIAJ) |
50 dB (unweighted EIAJ) |
| DIGITAL
AUDIO (LD & CD) |
| Output Level |
200mVolts rms ±15%; 1kHz
at -20dB |
185mV rms ±15%; 1kHz at -20dB |
200mVolts rms ±15%; 1kHz at -20dB |
| Frequency Response |
4Hz - 20kHz ± 0.5dB |
4Hz - 20kHz ± 2dB |
| Signal to Noise Ratio |
better than 98 dB
0.0045% EIAJ |
better than 95 dB |
| ANALOG AUDIO (LD only) |
| Output Level |
200mVolts ±40% FM
1kHz at 40% modulation |
200mVolts ±40% FM
1kHz at 40% modulation |
200mVolts ±22%, 40% FM
1kHz at 40% modulation |
200mVolts ±15%
1kHz at 40% modulation |
| Frequency Response |
20Hz - 20kHz ± 3dB |
20Hz - 20kHz ± 2dB |
| OUTPUT /
INPUT TERMINALS |
| Video |
(2) RCA Video out |
(2) RCA Video out
(1) SCART 21-pin A/V out |
(1) RCA Video out |
(1) RCA Video out
(1) S-Video (5-pin mini-DIN) out
(1) VHF out (F-type)
(1) Antenna VHF in (F-type, 75 ohms terminated) |
| Audio out |
(2-sets) RCA stereo L/R
(1) RCA mono |
(1-set) RCA stereo L/R
(1) RCA mono |
(1-set) RCA stereo L/R
(1) RCA mono |
(1-set) RCA stereo L/R
(1) RCA mono |
| Serial Interface |
RS-232C Serial I/F, D-sub 15pin,1.2k/2.4k/4.8k/9.6k
(bps) |
| Other |
Barcode cable jack
5vDC VHF adapter output
Headphone jack
AV Control in (mini phone jack) |
Barcode cable jack
5vDC VHF adapter output |
Barcode cable jack
5vDC VHF adapter output |
Barcode cable jack
5vDC VHF adapter output
Headphone jack |
| OPERATING PARAMETERS |
| LaserDisc Play |
Single Side |
| Pick Up Mechanism |
780 nono-meter Laser Diode |
| Spindle Motor |
Brushless |
| Average Search time (LD) |
1~54,000 (Frame) 4.5sec.
5~55min (Time) 11sec.
5~55min (Time) 6sec. w TOC |
1~54,000 (Frame) 4.5sec.
5~55min (Time) 11sec. |
| Stop Time (LD) |
Less than 5 sec. |
| User Display |
20 characters x 10 lines |
20 characters x 12 lines |
| Functions |
Selectable Auto Start Play, LD Tray &
CD Tray
Remote Control (SR type CU-V113); Optional Remote Control
(RU-V103)
Laser Barcode Mode 2 control built-in
BarCode CD
Command Protocols, Function switch, Dip switch
PAL/NTSC selection switch (CLD-2300D only) |
| ENVIRONMENT |
| Operating Temperature |
5° to 35° C |
| Operating Humidity |
5% to 90% |
| PLAYER ACCESSORIES |
Included
 |
Operationing Instructions Manual
Video Cable
Stereo Audio Cable
Wireless Remote Control (CU-V113A,
large)

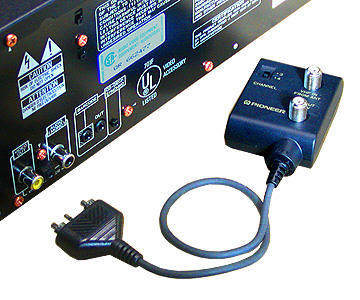

RF Modulator VHF
RF Antenna Cable
Antenna Adaptor
USA power cable
Barcode commands sheet |
Operationing Instructions Manual
Video Cable
Stereo Audio Cable
Wireless Remote Control (CU-V113A,
large)
Barcode commands sheet
NOT included:
RF Modulator UHF JA-RF50L (UK only)
IEEE 220vAC power cord |
Operationing Instructions Manual
Video Cable
Stereo Audio Cable
Wireless Remote Control (CU-V113A,
large)
RF Modulator VHF
USA power cable
Barcode commands sheet |
Optional
 |
UC-V109BC
Pen-type Barcode Reader
UC-V108BC
Scan-type Barcode Reader (not available)
Barcode
Software (Mac & PC) |
| CLD-V2800LB w V109 bundle |
CLD-V2300DLB w V109 bundle |
CLD-V2400ML w V109 bundle |
CLD-V2600ML w V109 bundle |
| GENERAL |
| Power Requirements |
AC 120volt, 50/60Hz, 3-prong USA plug |
AC 220-240volt, 50/60Hz |
AC 120volt, 50/60Hz, 3-prong USA plug |
| Power Consumption |
95watts max
(30 watts typical) |
| Safety Regulations |
UL-1409, FCC Class B, Class 1 Laser |
EC (87/308.EEC), LVD (73/23/EEC), EMC (89/336/EEC), CE
(93/68/EEC), Class 1 Laser |
UL-1409, FCC Class B, CSA 22.2 No1, Class
1 Laser |
| Dimensions (W x H x D) |
12.6 x 5 x 15.7 inches
(320 x 128 x 399 mm) |
16.5 x 4.8 x 16.2 inches
(420 x 122 x 411 mm) |
16.5 x 4.8 x 16.2 inches
(420 x 122 x 413 mm) |
16.5 x 4.8 x 15.5 inches
(420 x 122 x 395 mm) |
| Weight |
12.5 lbs. (5.7 kg) |
17.6 lbs. (8 kg) |
16.7 lbs. (7.6 kg) |
| Pioneer Manuals |
No longer available from Pioneer, see: LaserDisc
Database (UK) |
content ©2002 Pioneer Industrial
USA
top of page, Specifications,
Barcode
Software, Barcode Readers, Remote
Control, Parts,
Prices,
ORDER
 |
Pioneer Industrial Wireless Remote Control
DXR1036 (aka CU-V113)
for CLD-V series
This large button, membrane surface, durable remote is for use with
most Pioneer CLD industrial players, particularly the CLD-V2400, CLD-V2300D,
CLD-V2600 and CLD-V2800. Primary functions are clearly marked
and easy to use: Play, Pause, Stop, FF/FR, StepF/R, Search, Repeat, etc.
RU-V103 for LD-V series
Note: "REJECT" button functions as "STOP", does
not open disc drawer. |
|
|
..
