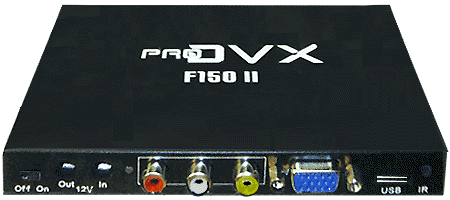

DVX-F150
DVX-F150
Digital Solid State Video Player
  • Use with any VGA, Video display, monitor or projector
  • NTSC or PAL
  • 4:3 or 16:9
  • JPEG, MPEG, MP3
  • Multi-media or still frame presentation
  • Personal Digital Photo Album
  • Trade show exhibits
  • Museum exhibits
  • Commercial display

Universal "Black-Box" digital picture and video presentation.  Works with any flat panel, LCD, Plasma, monitor, TV, projector or other video display with VGA or RCA video input.  Compact unit suitable for any environment with any display.

Display digital camera pictures on large screen home entertainment center.  Create continuous audio video presentation of personal digital photo albums, or professional advertising, informational, promotional, commercial, museum, engineering and/or architectural displays.

Controlled still JPEG, video image MPEG and audio MP3 content presentation from CF memory card.  Computer and flash memory interface via USB.  Steel case, fully solid state digital, no moving parts.  Professional high quality unit suitable for any private, business, government or commercial application.

 Features:
  • Bright, crisp, high contrast, NSTC or PAL digital output
  • Still image JPEG, video MPEG-1, 2 & 4, and MP3 audio content can be combined in presentations
  • On Screen Menus
  • Stereo out
  • VGA video out
  • RCA video out
  • Just pop in a CF card, power up and enjoy the show
  • USB computer / flash memory interface
  • Independent operation, or manual control by external keypad or remote
  • IR Remote control
for reference
DXV-F100 Manual (800Kb)
menu displays subject to change without notice
Exact appearance may vary

Specs, Prices, Order
DVX-F150 Specifications
  • ROM based operating system
  • CF Type I/II flash memory card for imagery
  • USB 2.0 TypeB computer interface (480Mb/sec)
  • Still image (JPEG) and video (MPEG-1, 2 & 4) content can be combined in presentations
  • On Screen Menu Displays for video/audio setup and show configuration
  • Exact appearance may varyAutoplay, Autoloop functions
  • Handheld IR remote control
  • NTSC/PAL compatible, auto sensing
  • 4:3 and 16:9 compatible
  • Plays MP3 background soundtracks during still image slideshows
  • VGA out (HDD-15)
  • RCA out
  • RCA L/R Stereo Audio out for MP3 music and video soundtrack
  • Manual ON/OFF power switch on rear
  • RCA audio/video cable included
  • External power supply with U.S.-standard cable
  • AC Adapter Power 100-240vAC, 50/60 Hz, 1.2amp, 80watts
  • DC input 12vDC, 3.0amps
  • DC out 12vDC
  • Operating temperature: 0°C ~ 60°C
  • Relative humidity: 5% ~ 95%
  • Unit Dimensions: 6 x 4.5 x .8 inches (15 x 11 x 2 cm)
  • Weight: 0.9 lbs (0.4Kg)
    		•
    *Specifications and menu displays subject to change without notice
