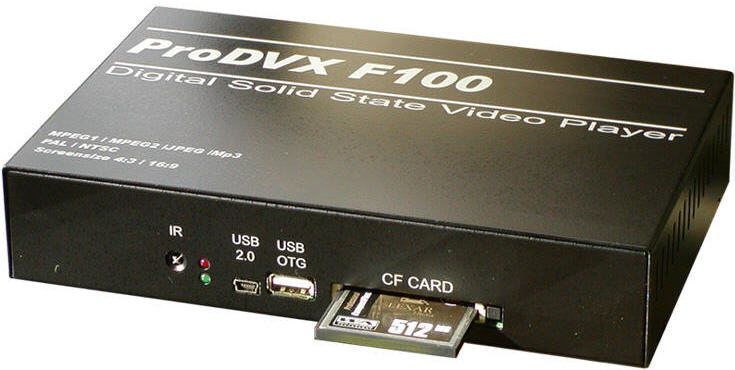

Digital Solid State Video Player
  • Use with any S-video display panel, TV, monitor or projector
  • NTSC or PAL
  • 4:3 or 16:9
  • Multi-media or still frame presentation
  • Personal Digital Photo Album
  • Trade show exhibits
  • Museum exhibits
  • Commercial display

Universal "Black-Box" digital picture and video presentation.  Works with any flat panel, LCD, Plasma, monitor, TV, projector or other video display with S-video input.  Small, modern, stylish unit suitable for any environment with any display.

Display digital camera pictures on large screen home entertainment center.  Create continuous audio video presentation of personal digital photo albums, or professional advertising, informational, promotional, commercial, museum, engineering and/or architectural displays.

Controlled still JPEG, video image MPEG and audio MP3 content presentation from CF memory card (or optional internal HD).  External keypad "Kiosk" compatible.  Computer and flash memory interface via USB.  Steel case, fully solid state digital, no moving parts.  Professional high quality unit suitable for any private, business, government or commercial application.
  • Bright, crisp, high contrast, NSTC or PAL digital output
  • Still image JPEG, video MPEG-1, 2 & 4, and MP3 audio content can be combined in presentations
  • On Screen Menus
  • Stereo out
  • dual S-Video out
  • Just pop in a CF card, power up and enjoy the show
  • optional internal HD can hold over 10,000 pictures
  • USB computer / flash memory interface
  • Independent operation, or manual control by external keypad or remote

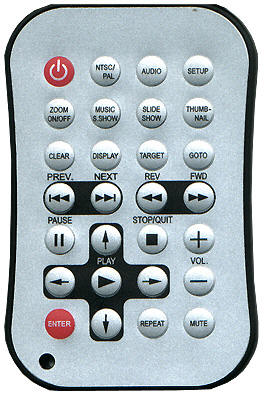

  • IR Remote control
User's Manual (800Kb)
menu displays subject to change without notice
Click to ENLARGE

Specs, Prices, Order
DVX-F100 Specifications
  • ROM based operating system
  • CF Type I/II flash memory card for imagery
  • USB 2.0 TypeB computer interface (480Mb/sec)
  • optional internal 2.5" hard disk available
  • Still image (JPEG) and video (MPEG-1, 2 & 4) content can be combined in presentations
  • On Screen Menu Displays for video/audio setup and show configuration
  • Autoplay, Autoloop functions
  • Handheld IR remote control
  • NTSC/PAL compatible, auto sensing
  • 4:3 and 16:9 compatible
  • Plays MP3 background soundtracks during still image slideshows
  • Stereo Audio out for MP3 music and video soundtrack (L/R RCA)
  • dual S-Video out (RCA, mini-DIN)
  • Manual ON/OFF power switch on rear
  • RCA audio/video and 9-pin S-video cables included
  • Optional External keypad control via set of (4) RJ-45 connectors on rear (keypad not included)
  • External power supply with U.S.-standard cable
  • AC Adapter Power 100-240vAC, 50/60 Hz, 1.2amp, 80watts
  • DC input 12vDC, 3.0amps
  • Operating temperature: 0°C ~ 60°C
  • Relative humidity: 5% ~ 95%
  • Unit Dimensions: 7.9 x 5.1 x 1.6 inches (20 x 13 x 4 cm)
  • Weight: 1.9 lbs (0.9Kg)
  • Shp.carton 9.5 x 7.8 x 5.6 inches  (24.1 19.7 14.2 cm)
  • Shp.wt. 3.5 lbs (1.6Kg)
  • *Specifications and menu displays subject to change without notice

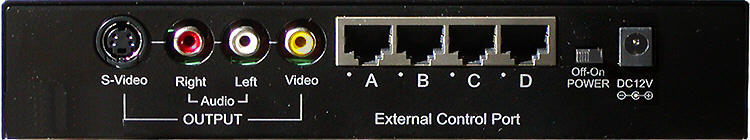

    DVX-F100 Rear Panel
    Rear Panel

    Specs, Prices, Order

    For Further Information, Email  or Call 440-888-4749 (M-F 9-5 ET)
